RODS, CLAMPS and BRACKETS

Hanger Rod

DIMENSION DRAWINGS

Dimensions for Hanger Rod
Rod Dia.A	Std. Thrd. Lgth. B	Maximum Recommended Load/lbs.		Weight per C
		Maximum Recommended Load/lbs.		C = Length in Inches
		650°F	750°F	8	10	12	14	18	24	30	36	42	48	54	60	66	72
3/8	6	610	540	*25	*32	*38	44	57	76	95	114	133	152	171	190	209	228
1/2	6	1130	1010	*45	*56	*67	78	100	134	167	201	235	268	302	335	369	402
5/8	6	1810	1610	*70	*86	*104	122	156	208	260	312	364	416	468	520	572	624
3/4	6	2710	2420	*100	*125	*150	174	225	300	375	450	525	600	675	750	825	900
7/8	6	3770	3360	*137	*169	*204	239	306	408	510	612	714	816	918	1020	1122	1224
1	6	4960	4420	*179	*214	*267	312	400	534	668	801	935	1068	1202	1335	1469	1602
1 1/8	8	6230	5560	*226	*280	*338	*395	507	676	845	1014	1183	1352	1521	1690	1859	2028
1 1/4	8	8000	7140	*279	*346	*417	*488	625	834	1043	1251	1460	1668	1877	2085	2294	2502
1 1/2	8	11630	10370	*402	*498	*600	*702	900	1200	1500	1800	2100	2400	2700	3000	3300	3600
1 3/4	10	15700	14000	*548	*675	*817	*947	*1225	1634	2042	2451	2860	3268	3676	4085	4493	4902
2	10	20700	18460	*717	*882	*1068	*1238	*1602	2136	2670	3204	3738	4272	4806	5340	5874	6408
2 1/4	12	27200	24260	*905	*1120	*1351	*1567	*2026	*2702	3377	4053	4728	5404	6080	6755	7430	8105
2 1/2	12	33500	29880	*1122	*1385	*1699	*1936	*2503	*3338	4172	5007	5841	6676	7510	8345	9180	10015
* Continuous threaded rod Column headings refer to drawings above.

Continuous Threaded Rod

DIMENSION DRAWINGS

Dimensions for Continuous Threaded Hanger Rod
Rod Size A	B = Length Ft.	Max. Recom. Load Lbs.		Weight per C Ft.
Rod Size A	B = Length Ft.	650°F	750°F	Weight per C Ft.
1/4	6 and 12	240	215	12
3/8	6 and 12	610	540	30
1/2	6 and 12	1130	1010	54
5/8	6 and 12	1810	1610	85
3/4	6 and 12	2710	2420	124
7/8	6 and 12	3770	3360	171
1	6 and 12	4960	4420	223
Column headings refer to drawings above.

Heavy Duty Beam Clamps

DIMENSION DRAWINGS

Heavy Duty Beam Clamps Include:

Two half clamps
Bolt with nut (assembled)

Dimensions for Heavy Duty Beam Clamp
Flange Width	Maximum Flange Thickness	Weight approx. lbs. ea.
4	1/2	3.82
5	5/8	4.35
6	3/4	4.52
7	7/8	4.84
8	7/8	5.10
9	1	5.83
10	1	6.25
11	1	6.67
12	1	7.09
Bolt Size	Stock Size	Maximum Recom. Load lbs.
5/8	1/2 X 2	3000
All dimensions are in inches. Column headings refer to drawings above.

Adjustable Beam Clamps

DIMENSION DRAWINGS

Dimensions for Adjustable Beam Clamp
Clamp Size Number	Maximum Rod Size A	Maximum Recommended Load lbs.	Weight approx. lbs. ea.	Maximum Beam Flange Thickness	B	V
1	3/4	2710	3.9	0.60	1 1/4	1 1/8
2	1	4960	9.2	0.60	1 11/16	1 1/8
3*	1	4960	13	0.60	1 11/16	1 1/8
4	1	4960	21.7	1.031	1 1/2	1 1/8
5*	1	4960	33.9	1.031	1 1/2	1 1/8
6	1 1/2	11500	23.9	1.031	2 1/8	1 1/8
7*	1 1/2	11500	35.8	1.031	2 1/8	1 1/8
8	2	11500	36.8	1.031	4 9/16	1 1/8
* Furnished with Links **Based on the allowable stresses shown in the ANSI Code for Pressure Piping Column headings refer to drawings above.

Rod Take Out for Adjustable Beam Clamp
Clamp Size Number	Rod Take-Out E
	For Width of Beam Flange
	3	4	5	6	7	8	9	10	11	12	13	14	15
1	4 1/2	4 5/16	4 1/16	3 5/8	2 7/8
2		4 3/4	4 7/16	4 1/8	3 3/8
3*					5 15/16	6	5 5/16	5
4	6 13/16	6 5/8	6 3/8	5 7/8	5 7/8	5 3/8	4 13/16
5*									8 1/8	7 3/4	7 1/8	6 5/8	6 1/16
6		7 3/16	7	6 3/4	6 3/4	6 5/16	5 13/16	5 3/16
7*									8 1/2	8 1/8	7 1/2	7	6 7/16
8		8 5/8	8 7/16	8 3/16	8 3/16	7 3/4	7 1/4	6 5/8
* Furnished with Links Column headings refer to drawings above.

Medium Welded Steel Bracket

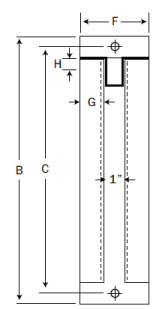

DIMENSION DRAWINGS

Dimensions for Medium Welded Steel Bracket
Bracket Number	Weight (approx.) lbs. ea.	A	B	C	D	E	F	G	H	J	L
0	17.4	12	18	15 1/2	1 1/4	2 1/2	4	1 1/2	1 1/2	1/4	13/16
1	27.3	18	24	21 1/2	1 1/4	2 1/2	5	1 3/4	1 3/4	3/16	13/16
2	47.7	24	30	27 1/2	1 1/4	2 1/2	5	2	2	1/4	13/16
MAXIMUM RECOMMENDED LOAD 3,000 LBS. All dimensions in inches. Column headings refer to drawings above.

Heavy Welded Steel Bracket

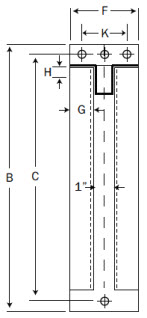

DIMENSION DRAWINGS

Dimensions for Heavy Welded Steel Bracket
Bracket Number	Weight (approx.) lbs. ea.	A	B	C	D	E	F	G	H	J	L
0	24.3	12	18	15 1/4	1 3/8	2 3/4	4	1 1/2	2	1/4		13/16
1	51.8	18	24	21 3/8	1 7/16	2 3/4	5	2	2	3/8	2 3/4	15/16
2	65.8	24	30	27 1/2	1 1/2	2 3/4	5	2	2 1/2	5/16	2 1/2	1 1/16
3	82.1	30	36	33 1/4	1 5/8	3	5	2	2 1/2	5/16	2 1/2	1 1/16
4	140.5	36	42	39	1 1/2	3	6	2 1/2	3 1/2	3/8	3 1/2	1 1/16
5	166.4	42	50	46	1 1/2	1 1/2	6	2 1/2	3 1/2	3/8	3 1/2	1 1/16
MAXIMUM RECOMMENDED LOAD 3,000 LBS. All dimensions in inches. Column headings refer to drawings above.
